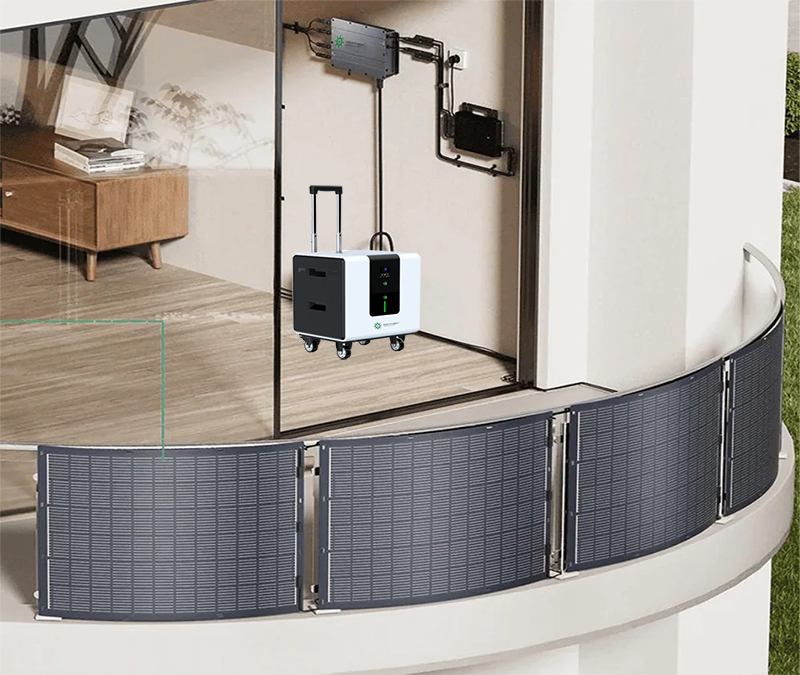

200W Transparent And Bifacial Solar Panel For Solar Balnony, it is customized flexible solar panels.
200W Transparent And Bifacial Solar Panel For Solar Balnony, it is customized flexible solar panels.
Easy to install with holes and buckles, 200W transparent and Bifacial flexible solar panel datasheet:
200W transparent and Bifacial flexible solar panel datasheet | |
Peak Power(Wp): | 200W |
max power voltage/Vmp(V) | 22.62 |
max power current/Imp(A) | 8.58 |
open circuit voltage/VOC(V) | 26.57 |
short circuit current/Isc(A) | 9.36 |
minimum bending radius(mm) | 450 |
max system voltage(VDC) | 1000V |
dimension(mm) | 1130*900*3
customized is available |
weight(kgs) | 4.2 |
Above specifications at standard test conditions(STC) | 1000W/M², AM 1.5cell temperature 25°C |
Transparent and Bifacial flexible solar panel applications:
