535W Triangle Customized Flexible Solar Panel

  • 535W Custom Flexible Solar Panel – Perfect for pavilions, marine vessels, sailboats, houseboats, LED lighting systems, camping, charging stations, and more.

  • Unique Shape, Superior Output – Despite its large and unconventional design, the panel remains lightweight and delivers high-efficiency power output.

  • Flexible Customization – Available in custom sizes and voltages. Power output adjusts according to the panel’s dimensions, offering tailored solutions for diverse energy needs.

535W Triangle Customized Flexible Solar Panel-NEWLIGHT ENERGY

Descriptions & Advantages

535W Triangle Customized Flexible Solar Panel-NEWLIGHT ENERGY

The same power 100W our Flexible solar panel VS 100W Glass solar panel:

535W Triangle Customized Flexible Solar Panel-NEWLIGHT ENERGY

535W Triangle Customized Flexible Solar Panel – Key Advantages

  • Enhanced Flexibility
    Bends to a minimum radius of 40 cm (15.75 in), making it suitable for installation on curved and irregular surfaces like trailers, boats, tents, and rooftops.

  • Lightweight & Easy Installation
    At just 0.1 inches thick and weighing 3.97 lb, it’s ideal for applications requiring minimal weight. Its design facilitates easy transport, installation, hanging, and removal.

  • High Conversion Efficiency
    Utilizes high-efficiency monocrystalline solar cells with back-contact technology, eliminating surface electrodes to enhance sunlight absorption, achieving up to 50% more efficiency than standard panels.

  • Durable Materials
    Constructed with KPC or ETFE frontsheet for superior light transmittance and longevity. The TPT backplane offers excellent heat dissipation, waterproofing, high-temperature resistance, and ease of cleaning.

  • Versatile Applications
    Ideal for 24-volt battery charging. Multiple panels can be connected in series for 24/48V systems. Compatible with solar controllers/regulators to protect batteries and ensure efficient energy management.

Big structure 535W PERC triangle customized flexible solar panel datasheet:

535W  High Efficiency Flexible Solar Panel(3pcs connected)
Peak Power(Wp): 215W+215W+105W
open circuit voltage/VOC(V) 28.57/28.57/28.57
max power voltage/Vmp(V) 8.71/8.71/4.26
short circuit current/Isc(A) 9.59/9.59/4.69
max power current/Imp(A) 24.7/24.7/24.7
minimum bending radius(mm) 450
max system voltage(VDC) 1000V
dimension(mm) customized with triangle
weight(kgs) 6.5
Above specifications at standard test conditions(STC) 1000W/M², AM 1.5

cell temperature 25°C

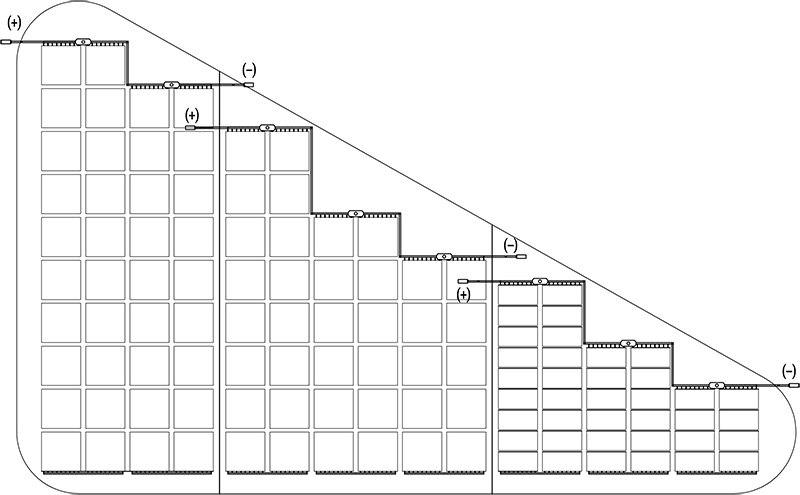

535W PERC flexible solar panel drawing

535W Triangle Customized Flexible Solar Panel-NEWLIGHT ENERGY

Installation picture

535W Triangle Customized Flexible Solar Panel-NEWLIGHT ENERGY
