Model: 2FSA010
1. 2500W power solar charging station with solar panels tracking system
2. For E-Car backup charge;
3. For phone charge;
4. For any electrical devices charger not bigger than 4000VA power at the same time charged;
5. On grid or off grid is optional.

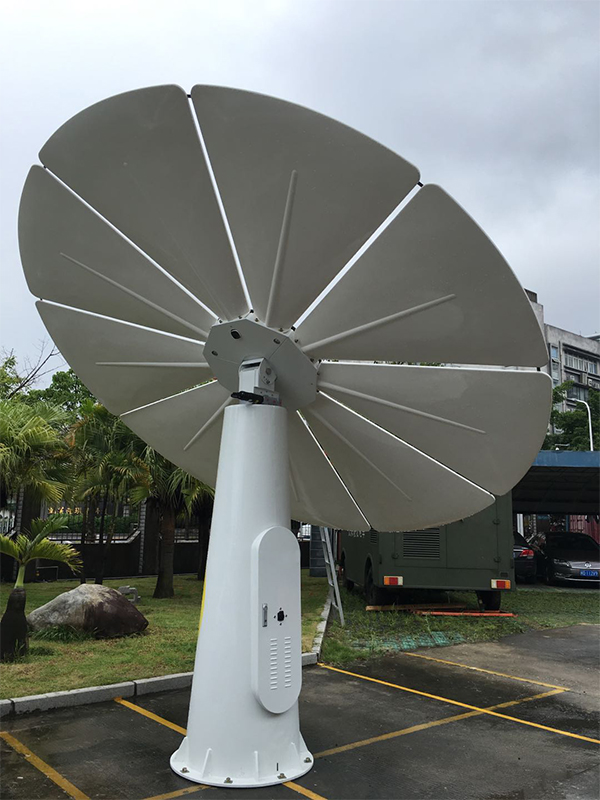

2500W Power Solar charging pole with track system for vehicle E-Car charge
this product sun tracking system design of solar power supply system. it gathers solar power generation, energy storage, inverter, tracking control in one which can be used to supply long-term power for small and medium-size electrical equipments in scenic sites, park, villages, barracks, outposts, communications base stations and other places.
In addition to the traditional distributed solar power station of safe, reliable, long life, no energy consumption, no pollution etc, they also have the follow characteristics:
1. novel and beautiful model,use Sun tracking bionic design, combined with color matching, and the use of new manufacturing process, so that product is complete different from the traditional PV power plant of blunt, make it easy for the photovoltaic power station to join the public life;

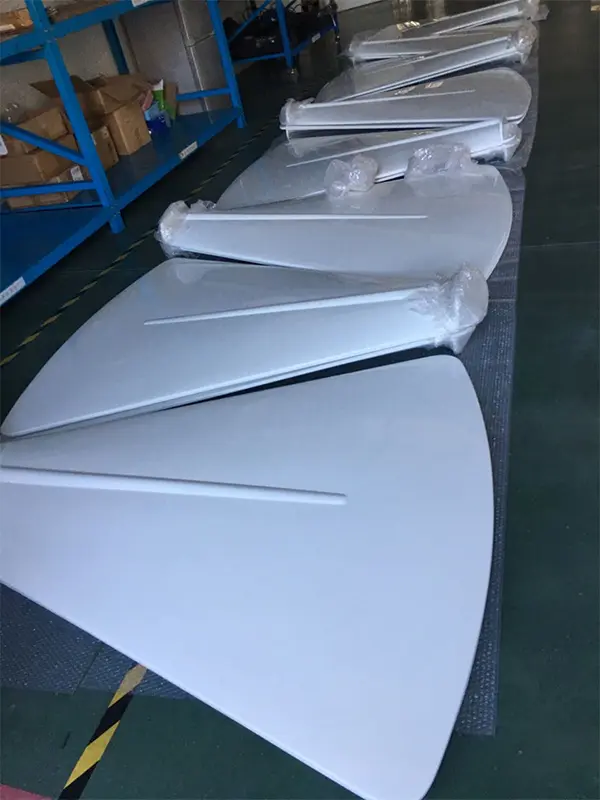

2. High power generation efficiency use flexible monocrystalline silicon solar panel, the conversion rate is up to 25%, with smart tracking function, the power generation efficiency is 40% higher than the traditional glass encapsulation solar PV system;
3. small occupancy. as a result of the tree structure, the entired product covers an area of less than 1 square meter, circularsolar leaves provide shadow for the publilc to rest;
4. easy installation. as the main rod integrate cabinet, battery cabinet, solar bracket, the number of product components are greatly reduced, the entire product only need an installation base, greatly reducing the installation workload;
5. on grid solar system expansion. if need, it can be designed to be on grid power generation and directly join to the grid, to achieve a larger power supply appliations, you can also include the romote monitoring function, to achieve intelligent operational management network.
Flexible solar panels | |
Solar panel type | 2500w flexible solar panel with tracking |
Power Output | |
Inverter output | 4000VA |
AC Output | AC 230V/50HZ(2pcs) |
DC Output | DC5V/2A(2pcs) |
LED light power | 1W*2pcs(option) |
Dimension and Weight | |
Total Weight | 850KGS |
Total Height | 4.4m |
Diameter of solar panel(max) | 4.32m |
Solar Tracking | |
Tracking/Control type | Vertical single axis, leaning type time control |
Azimuth range | +/- 90 degree(Automotive) |
Pitch angle range | 0˚/15˚/25˚/35˚/45˚/55˚ |
Battery(optional)-off grid | |
Battery capacity | 48V/200Ah |
Battery type | Gel battery |
Environmental Adaptability | |
Working temperature | -20 degree to 60 degree |
Anti-Salt spray | It can withstand salt corrosion in the coastal area. |
