IBC High Efficiency Flexible Solar Panel

1. 110W IBC flexible solar panel for RV, Caravan, Marine, sailboat, houseboat, trawlers, ships,  LED lighting , camping, charger etc.

2. comparing to SUNPOWER solar pnael, the same structure, but IBC better higher values.

3. Customized size and volltage are accepted, depends on size to change different power.

Descriptions & Advantages

IBC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

IBC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

IBC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

IBC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

1. high efficiency Flexible solar panel, IBC(Interdigitated Back Contact ) the same structure to SUNPOWER solar panel, but our IBC solar panel has bigger power per piece, better performance with cheaper price;

2. Lightweight, ETFE coated IBC flexible solar panel compare to glass solar panel only 1/5 weight;

3. Thin Film, 2-3.5mm about one coin thickness;

4. Without Glass, not easy break, good to somewhere like weak roof or limited area, like solar car, solar boat, solar yacht etc applications, also better transportation;

5. IBC Flexible solar panel High Efficiency up to 23-24.5%, but mono glass solar panel only 17-19%;

6. High waterproof Grade, IP68 good for RVs and marine etc.

Encapsulation Technology

solve the problem such as monocrystalline silicon organic encapsulation technology and bonding strength to make the product serivce lifetime up 15-20 years.

Pressed by concave and convex structure to avoid the problem of structure mirror, can more fully absorb sunlight, improve the capacity, enhanced the surface in the process of laminating adhesive strength, avoid bubbles, between EVA and avoid fold, suppresion of concave and convex point after the angle of the solar panels can be wider scope for installation, avoid the error caused by the installation angle reflection loss.

solving the combination problem of solar cells and fabric, the weight of our flexible solar panel is only one fifth compared to the same weight watt traditional glass solar panel.

IBC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

take for example 110W IBC flexible solar panel specifications

110W IBC High Efficiency Flexible Solar Panel
Peak Power(Wp): 110
open circuit voltage/VOC(V) 24.5
max power voltage/Vmp(V) 20.9
short circuit current/Isc(A) 5.61
max power current/Imp(A) 5.27
minimum bending radius(mm) 450
max system voltage(VDC) 1000
dimension(mm) 1090*540*2.5
weight(kgs) 2.0
Above specifications at standard test conditions(STC) 1000W/M², AM 1.5

cell temperature 25°C

Below some datasheet of IBC flexible solar panel for reference, it is customized according to customer needs.

No.

Power

(W)



Matrix

(solar cell)



Vmp

(V)



Imp

(A)



Voc

(V)



Ics

(A)

efficiency

(%)

Dimension(mm)

Junction box

Back or Front

Thickness(mm) without back glue Weight

about(kg) without back glue

1 50W 4*2 8.80 5.68 9.20 5.88 23-24.50% Back L*W: 745*372

Front L*W:  775*372

3mm 1.2
2 75W 4*3 13.20 5.68 14.10 5.88 Back L*W: 745*538

Front L*W: 775*538

1.5
3 100W 4*4 18.12 5.53 20.40 5.72 Back L*W: 705*745

Front L*W: 705*775

2.0
4 125W 4*5 20.20 6.18 21.54 6.52 Back L*W: 705*910

Front L*W: 705*940

2.5
5 150W 4*6 24.80 6.05 25.12 6.29 Back L*W:705 *1075

Front L*W: 705*1105

3.0
6 175W 4*7 28.84 6.16 29.50 6.36 Back L*W: 705*1240

Front L*W: 705*1270

3.5


7

 200W 4*8 32.02 6.33 33.39 6.58 Back L*W: 705*1400

Front L*W: 705*1435

3.8
8  225W 4*9 36.25 6.21 40.24 6.38 Back L*W: 705*1570

Front L*W: 705*1600

4.0
9  280W 5*9 32.30 8.67 33.87 9.13 Back L*W: 870*1570

Front L*W: 870*1600

5.0
10  310W 5*10 34.22 9.10 36.50 9.50 Back L*W: 870*1720

Front L*W: 870*1740

5.5

110W IBC flexible solar panel drawing

IBC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

About high efficiency flexible solar cell information

IBC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

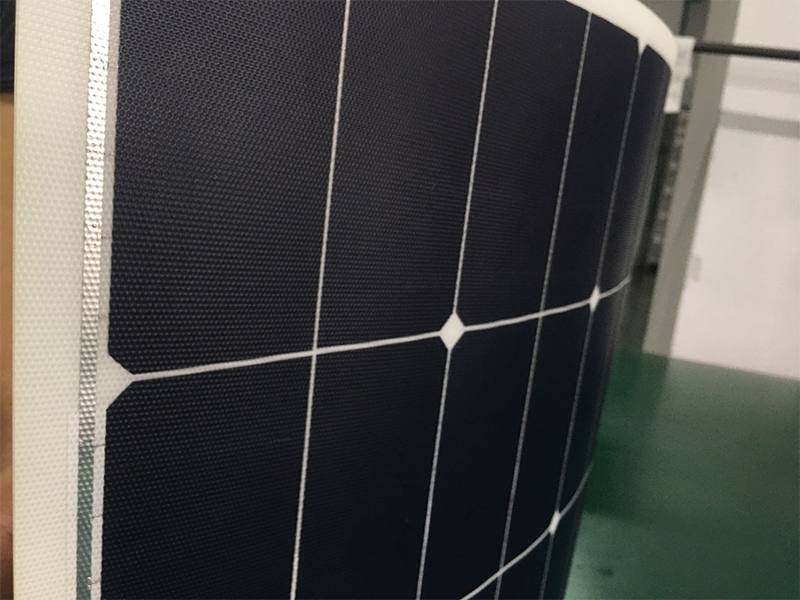

110W IBC flexible solar panel picture show
