PERC High Efficiency Flexible Solar Panel

Customized PERC High Efficiency Flexible solar panel customized for different project applications, good for RVs, solar bus, solar car, solar truck, solar caravan and marine industries, solar boat, solar yacht, solar sailing, light weight roofs and building, solar light etc.

Descriptions & Advantages

PERC High Efficiency Flexible solar panel as below icon:

  • FLEXIBLE angle less than 25 degree;
  • Light weight only 20% with heavy glass solar panel;
  • Thickness 2.5-3mm;
  • Without glass, not fragile, good for transportation;
  • High effficiency max up to 25%;
  • High waterproof grade IP68.

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

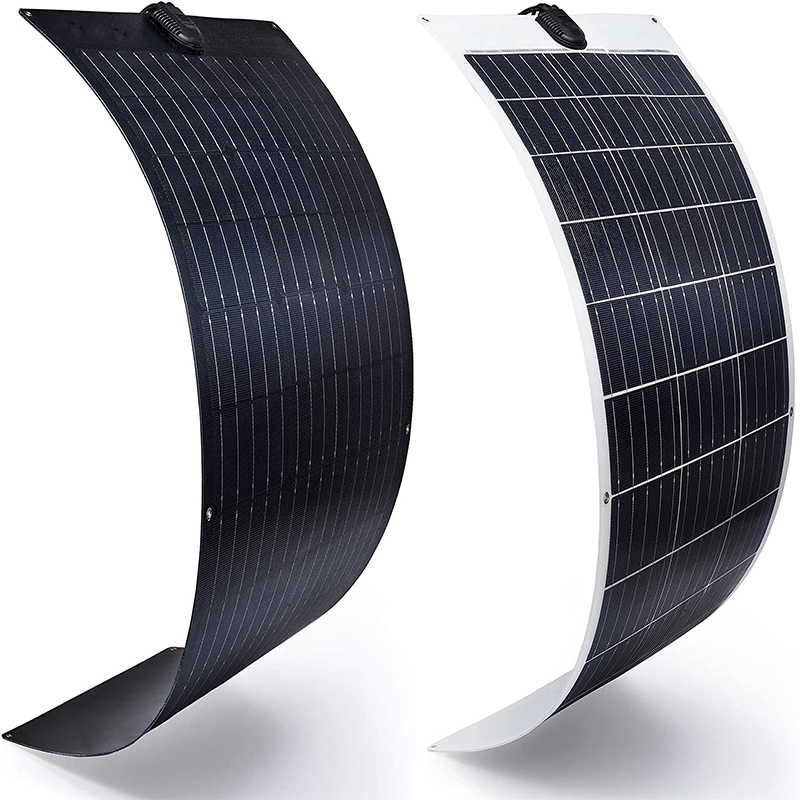

  • 【Good flexibility】The minimum radius of the arc that a solar flexible panel can reach is 40cm(15.75 in), our factory provide different structure with differentg dimension to meet clients requirements, It is allowed to be installed on trailers, boats, cabins, tents, cars, trucks, yachts, roofs or any other irregular surface;
  • 【Light weight & easy to install】 100W for example only about 0.1 inches(2.5-3mm) thickness and weighs only 3.97lb(1.8kgs), which is very suitable for the assembly of lightweight solar panels. And the solar panel is easy to transport, install, hang, and remove;
  • 【High efficiency output】High efficiency 23-25% monocrystalline solar cell, adopt unique laminated technology to increase the solar panel conversion efficiency up to 50% more efficiency than ordinary;
  • 【High-quality material】The solar panel surface made of ETFE. ETFE material has higher light transmittance and longer service life than ordinary materials. ETFE materials ensure the best performance day after day. The backplane adopts TPT, which is good for heat dissipation, waterproof, high temperature resistance and easy to clean.
  • 【Wide range of application】 Voltage is customized according to customer needs,Multiple panels can be connected in series to charge 24/48 volt batteries. It needs to be used with the controller to protect the battery, and the solar panel can be easily connected to the solar controller or regulator.

PERC high efficiency Flexible solar panel customized, attached some datasheet for reference:



No.



Power

(W)



Matrix

( solar cell)



Vmp

(V)



Imp

(A)



Voc

(V)



Ics

(A)

efficiency

(%)

Dimension(mm)

Junction box

Back or Front

Thickness(mm) without back glue Weight

about(kg) without back glue

1 55W 182 solar cell (4*2) 8.96 6.13 10.75 6.63 23-24.5% Back L*W: 765*395

Front L*W: 785*395

3mm 0.95
2 85W 182 solar cell (4*3) 13.44 6.33 16.12 6.83 Back L*W: 765*585

Front L*W: 785*585

1.67
3 115W 182 solar cell (4*4) 17.92 6.45 21.50 6.95 Back L*W: 765*765

Front L*W: 795*765

2.22
4 140W 182 solar cell (5*4) 22.40 6.27 26.88 6.75 Back L*W: 960*765

Front L*W: 980*765

2.75
5 155W 166 solar cell (9*3) 30.24 5.13 36.28 5.56 Back L*W: 1580*550

Front L*W: 1600*550

3.25
6 180W 182 solar cell (5*5) 28.0 6.44 33.60 6.94 Back L*W: 960 *960

Front L*W: 980*960

3.50
7 215W 182 solar cell (6*5) 33.60 6.40 40.32 6.94 Back L*W: 1140*960

Front L*W: 1160*960

4.12
8  250W 182 solar cell (7*5) 39.20 6.40 47.04 6.94 Back L*W:1325*960

Front L*W: 1345*960

4.75
9 285W 182 solar cell (8*5) 44.80 6.40 53.76 6.94 Back L*W: 1510*960

Front L*W: 1530*960

5.35
10 300W 166 solar cell (9*6) 30.0 10.10 36.0 10.50 Back L*W: 1550*1050

Front L*W: 1570*1050

6.02
11 320W 182 solar cell (9*5) 50.40 6.35 60.48 6.85 Back L*W: 1695*960

Front L*W: 1715*960

6.10
12 355W 182 solar cell (10*5) 56.0 6.35 67.20 6.85 Back L*W: 1880*960

Front L*W: 1900*960

6.75
13 430W 182 solar cell (10*6) 67.20 6.40 80.64 6.91 Back L*W: 1880*1140

Front L*W: 1900*1140

8.05
14 460W 210 solar cell (8*6) 53.76 8.68 63.6 9.11 Back L*W: 1735*1300

Front L*W: 1750*1300

8.50
15 500W 182 solar cell (10*7) 78.40 6.38 94.08 6.37 Back L*W: 1880*1325

Front L*W: 1900*1325

9.25

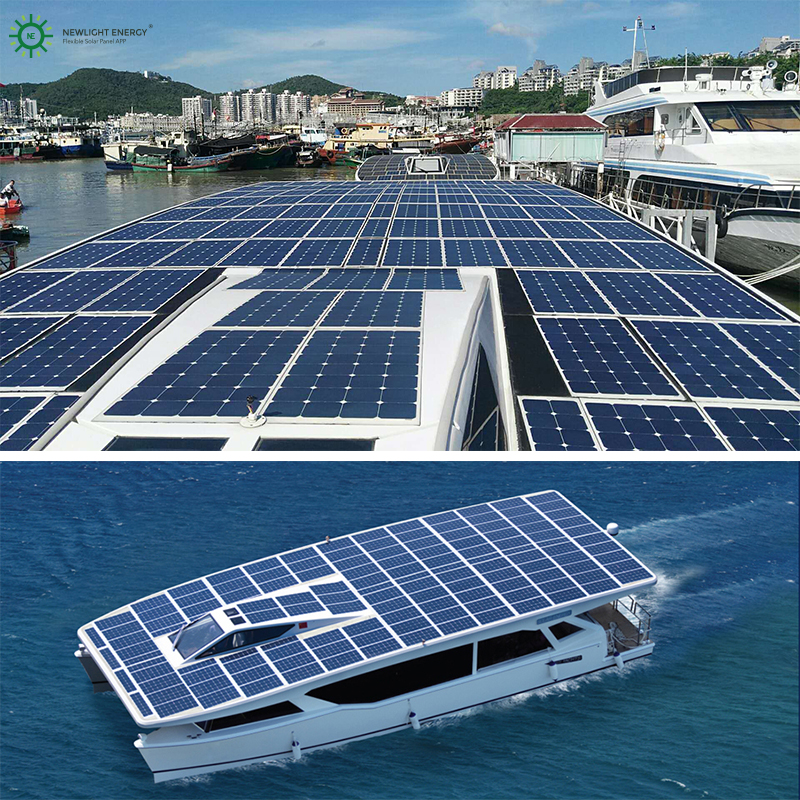

1) High efficiency flexible solar panel for Solar Marine:

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

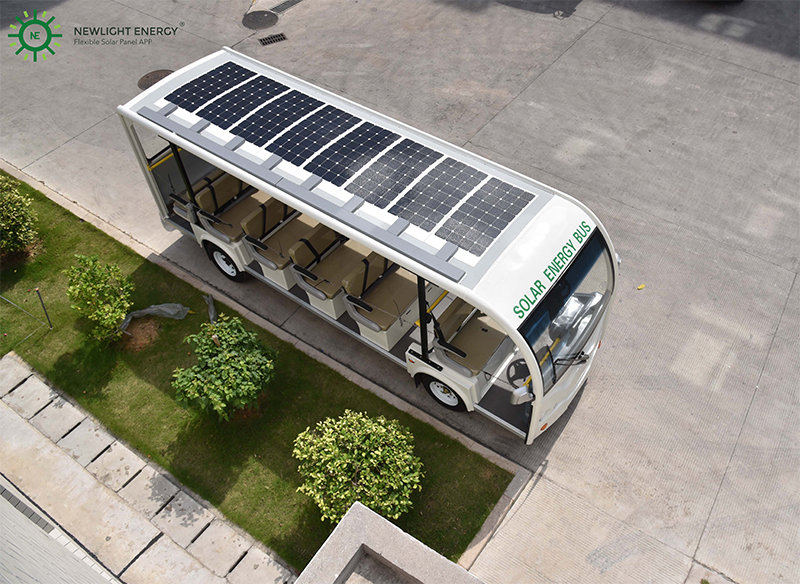

2) High efficiency flexible solar panel for Solar Transportation Vehicles:

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

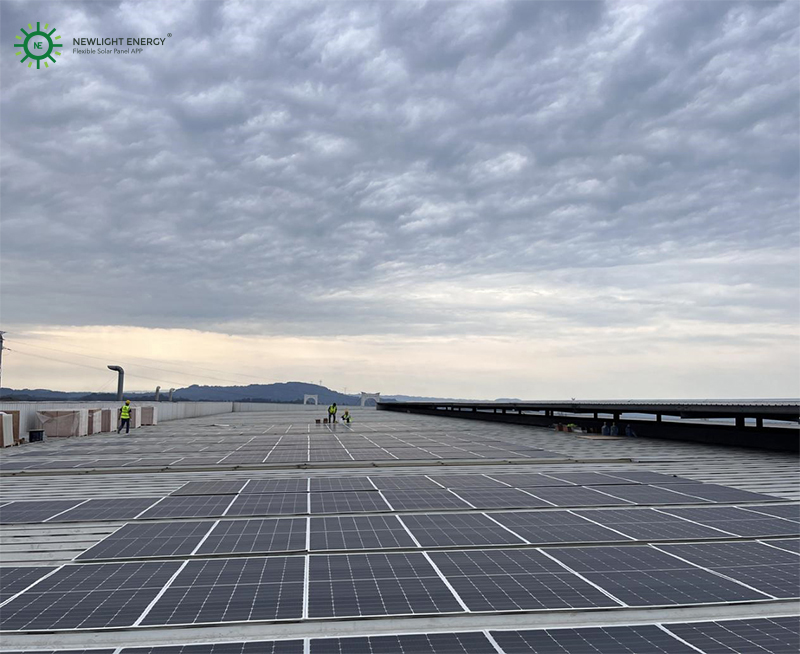

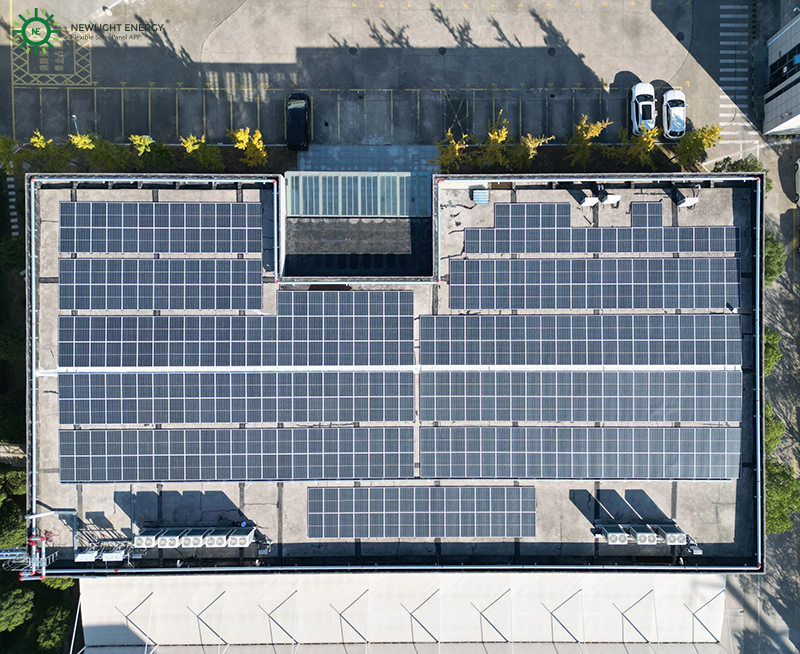

3) High efficiency flexible solar panel For Solar Roof Industrial and Commercial power system:

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

4) High efficiency flexible solar panel For Balcony Solar Panel with smart APP monitoring system:

PERC High Efficiency Flexible Solar Panel-NEWLIGHT ENERGY

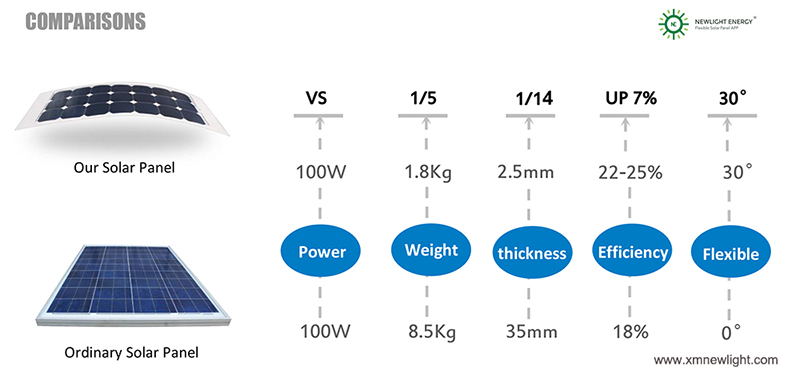

Comparing to USA Sunpower flexible solar panel, nowadays NEWLIGHT ENERGY has much competitive advantages to replace their solution, similar efficiency with high power output but much lower price, our mession let the world run the best flexible solar panels.
