120W Folding Solar Panel Blanket For Charger
- Folding solar panel blanket can be used for solar panel installation in different scenarios such as boats, RV roofs, off-grid systems etc., to ensure that the solar panels are at the appropriate angle to receive sunlight and improve power generation efficiency;
- Provide customized services, such as customizing dimension and voltage suitable for different sizes of solar panels, to meet the installation needs of various users for folding solar panels.
Descriptions & Advantages
120W Folding Solar Panel Blanket For Charger

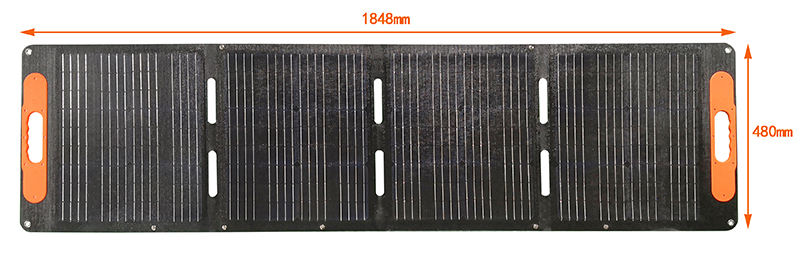

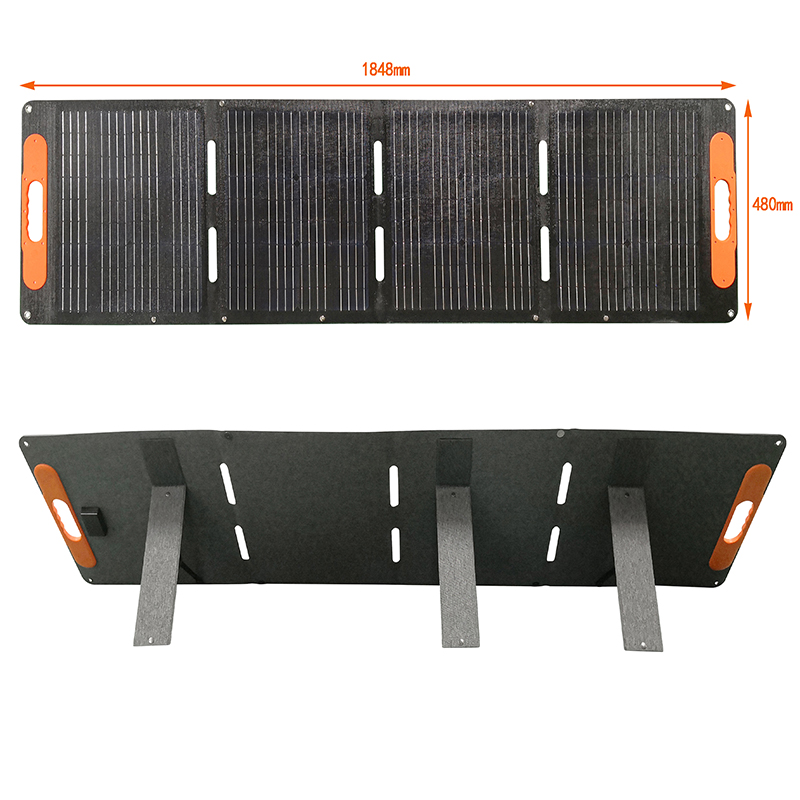

- Foldable Portable Solar Panel For Power Station – Thin and lightweight, only solar panel weights about 5.4kgs, it can be folded from 1848*480*25mm(junction box) into 494x480x45mm. You can conveniently store and carry the solar panel in the attached pouch, thanks to its compact size and handle.
- Multi Charging Technology – Straight out:12AWG doublecore wire 2 meters,one to threeDC5521+XT60+Anderson 30A;
- Solar Panel Charger for Solar Generator – 20V/6A DC output compatible with most of the power stations and solar generators. Perfect for outdoor emergency power, Camping, RV, Van.
- Complete Solar Panel Kit & High Conversion Efficiency Solar Cell – Whole set solar charger off-grid system, plug and play designed. High efficiency semi flexible solar cell technology makes conversion rate up to 23-25%.
- Waterproof IP68 Technology – Solar panel is fully laminated with a layer of ETFE polymer reaching waterproof level IP68. Also durable enough to extend the lifespan of the solar panel.
120W Folding solar blanket for portable solar power charger Specifications
| Model | NE-PS120W |
| Peak power Pm(W) | 120W |
| Open circuit voltage Voc(V) | 24.0V |
| Max. power voltage Vmp(V) | 20.0V |
| Max. power current Imp(A) | 6.00A |
| Short circuit current Isc(A) | 6.30A |
| Solar cells Efficiency | 23-25% |
| Solar panel model&number | 30W*4pcs
（2 in series 2 by parallel） |
| Folding size | 494*480*45mm |
| Deployment size | 1848*480*25mm |
| Weight | 5.4kg |
| solar cell | High Efficiency PERC Mono solar cell |
| Solar panel Front cover(material) | ■ETFE
(optional)Add enhanced composition material. |
| Solar panel backboard(material) | ■Epoxy Board（Default）
(optional)FR-4 Fiberglass Board |
| Output port | ■conjunction box+30CM cable
(could be customized) |
| NOCT/Operating temperature | -40℃- +85℃ |
| Storage temperature limits | -10℃- +30℃ |
| Waterproof grade | IP65 |
| STC | 1000W/m2, Temp:25℃,AM:1.5 |
| Package size/Weight | One piece：520*500*70mm
G.W：6.0KG/Carton Package：525*300*540mm（4pcs/Carton） G.W：26KG/Carton |
Remark: We customize all semi-flexible solar panels according to specific requirements in terms of dimensions, voltage, and current.
Precautions For The Use Of Solar Blanket:
1: Solar blanket should be placed in direct sunlight, and adjust the appropriate Angle to receive light to achieve maximum power generation effect.
2: This product is suitable for mobile energy storage power supply equipment with rated voltage DC 24-28V (with built-in solar charging protection function) or battery charging, but the output electrode of the solar panel cannot be used to directly charge the battery, and a solar charging controller must be installed.
3: If the rain shower does not affect the normal use (note that it cannot be contacted by conductive/corrosive liquid such as seawater, which will lead to short circuit inside the junction box resulting in abnormal power generation, if there is contact, rinse it with clean water and dry it)
4: When connecting the solar controller/energy storage integration, pay attention to the positive and negative terminals of the interface should be correctly connected.
5: Before connecting the solar controller/battery/energy storage device, check the product specifications/power/current/voltage requirements in detail and do not exceed the limits to prevent damage to the device and avoid uncontrollable consequences.
6: The voltage of the equipment in the light has exceeded the safety voltage of the human body, should avoid direct contact or short circuit equipment electrodes, to avoid electric shock or cause safety hazards! If the solar panel is damaged, it should be stopped to prevent leakage damage!
7: The use should be handled lightly, strictly prohibited from beating, heavy pressure, impact, otherwise it may seriously damage the solar cell.
